Sale!
Configuration: with Extended Temperature
ACTi ECD-1000T 16-Channel Megapixel Extended Media Display Station
Original price was: $599.00.$179.70Current price is: $179.70.
Save: 70%
Description
ECD-1000T Includes Only:
- Media Display Station
- Power Adapter
- Pole Mount
16-Channel Megapixel H.264 Extended Temperature Media Display Station with Digital Signage, RJ-45 Video-Input, HDMI/BNC Video Output, USB 2.0, PoE/DC12V.
Features:
- Maximum Number of Video Devices: 16
- Free License: 16
- Event trigger, response and notification
- Web Client
| Subject to the use of all the optional accessories | |
| Product Type | Media Display Server |
| Maximum Resolution | Local: up to 2MP; Remote: up to12MP |
| Product Application | Digital Signage, Video Decoding, Public Viewer |
| Maximum Number of Cameras | 16 |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| License required | No |
| Free License | 16 |
| Display Layout Mode | 1, 2, 4, 9, 12, 16, 1+5, 1+7, 1+12, 2+4, 2+8 |
| Digital Zoom | Yes |
| Event Status | Network loss, Motion, DI |
| PTZ Control | PTZ Control, Speed Control, 32 preset points, 32 preset tours |
| Pan, Tilt or Zoom protocol | ACTi URL command |
| Video Source | Live video streams from IP Camera, Software NVR (NVR 3), Standalone NVR (GNR, INR series) |
| Compression | H.264 |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 720 x 480 25 fps at 720 x 576 30 fps at 640 x 480 |
| Audio Type | 1-way |
| Network Protocol & Service | TCP, UDP, IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | Password protected user level |
| Event Trigger | Video loss, Network loss |
| Event Response | Play alert sound |
| Permission control | Multi-group/users, Liveview/setup/remote level permission |
| Client PC Operating System | Windows 8.1, Windows 7 SP1 |
| Server Operating System | Embedded Linux |
| USB | 1-Port USB 2.0 |
| Language | Multi-Language |
| System Status Monitor | Real time status reports on remote browser |
| Unified Solution | Fully compatible with ACTi cameras and encoders |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| HDMI Output | 1, HDMI Type A |
| Analog Video Output | 1 x CVBS, BNC connector |
| External Storage Interface | USB(Support Digital Signage function from external USB drive) |
| Local Access | HDMI monitor, USB keyboard & mouse |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.5 W (PoE), 7 W (DC) |
| Weight | 566g (1.25lb) |
| Dimensions | (W x H x D): 135mm x 114mm x 33mm (5.3″ x 4.5″ x 1.3″) |
| Bundled Accessories | Power Adapter, Pole Mount |
| Mount Type | Surface, Pole, VESA mount 10×10 |
| Starting Temperature | -34°C – 70°C (-29°F – 158°F) in non-isothermal air flows |
| Operating Temperature | -34°C -70°C (-29°F – 158°F) in non-isothermal air flows |
| Operating Humidity | 10% – 85% RH |
| Remote Access | Web Client |
Related products
-
Sale!
Poly 2200-16200-122 SoundStation2 Expandable Conference Phone
Original price was: $504.00.$151.20Current price is: $151.20.Save: 70%
Add to cart -
Sale!
Poly 2200-48810-001 VVX 150 Desktop Phone with Power Supply
Original price was: $86.94.$26.08Current price is: $26.08.Save: 70%
Add to cart -
Sale!

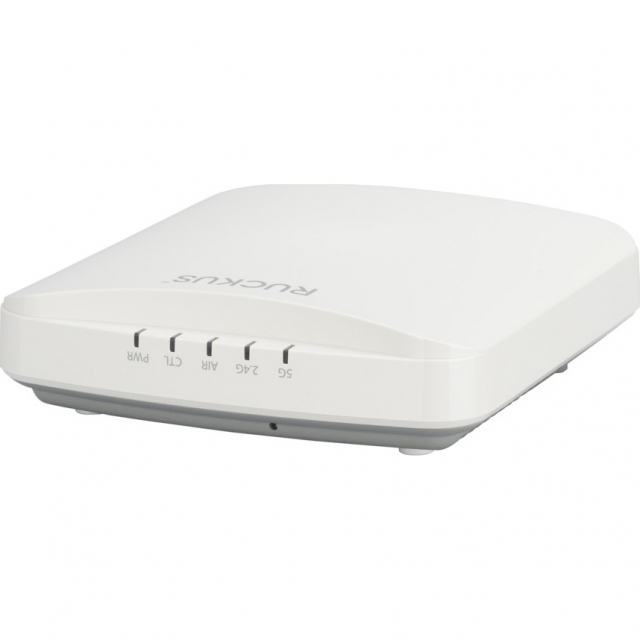

Ruckus 9U1-R350-US02 Unleashed Dual-Band Access Point Up to 1.8Gbps
